1. STRIPS METERIAL
● Cold and hot rolled carbon steel
● Low and high resistance carbon steel
● Galvanized, galvanized aluminium, aluminized steel
● Stainless steel
● Aluminium
● Copper
2. APPLICATION
ERW Carbon Steel Tube Mills |  |
Roll Forming Mills |  |
3. MODELS
Model | Round Tube | Square & Rectangle Tube | Speed(m/min) | ||
O.D(mm) | Thickness (mm) | O.D(mm) | Thickness (mm) | ||
AS32 | Φ16~Φ38 | 0.5~2.5 | 10×10~30×30 | 0.5~2 | Max.120/150 |
AS60 | Φ16~Φ63 | 0.6~3 | 15×15~50×50 | 0.6~2.5 | Max.100/140 |
AS76 | Φ21~Φ76 | 0.8~3.5 | 15X15~ 60X60 | 0.8~3 | Max.100 |
AS127 | Φ48~Φ127 | 1.5~5 | 40×40~100×100 | 1.5~4.5 | Max.60 |
AS165 | Φ60~Φ165 | 2~6 | 50×50~130×130 | 2~5.5 | Max.60 |
AS254 | Φ114~Φ254 | 3~8 | 90×90~200×200 | 3~6 | Max.50 |
AS325 | Φ165~Φ325 | 4~12 | 150×150~250×250 | 4~10 | Max.40 |
AS426 | Φ165~Φ426 | 6~14 | 130×130~300×300 | 6~12 | Max.30 |
Note: the above models are for reference, can be customized according to requirements.
4. FEATURESE

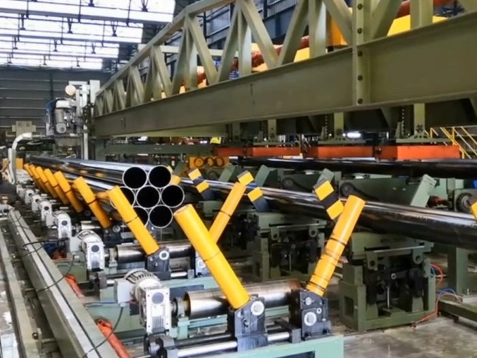

● Set the number of each layer of steel pipe and layer number after automatic stacking, manual labor intensity is low.。
● Save the number of workers, generally only 2 people pack is enough.
● Meet the high speed operation of the unit, improve the production efficiency.
● Low noise.
● High safety performance, no potential safety hazard.
● No collision, the shape and surface quality is good。
● PLC control, realize equipment integrated chain control and fault diagnosis function.
● Remote debugging equipment and fault detection。
● Electropermanent magnet chuck, strong adsorption capacity, steel pipe will not fall off after power failure.
● Selected Simens, Yaskawa, Schneider and other well-known electrical components.
● International standard parts are selected to facilitate local purchase.
