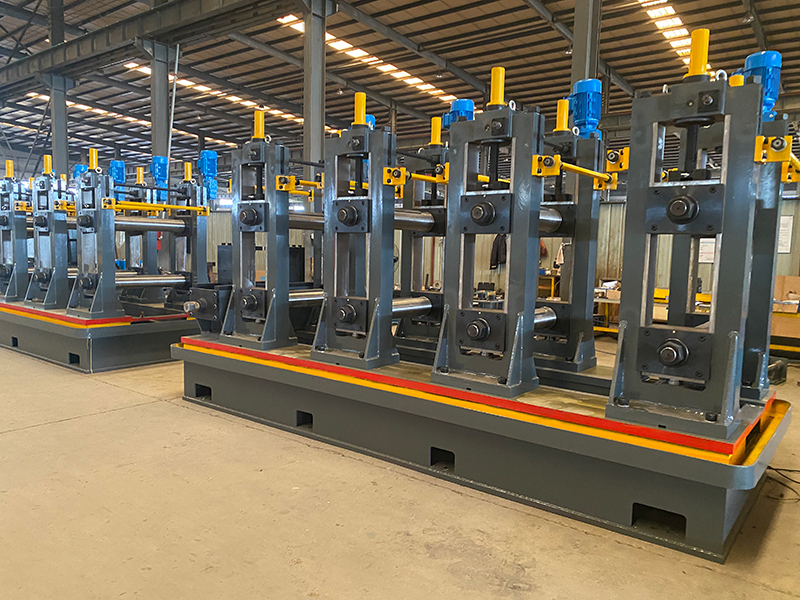

ERW Carbon Steel Tube Mills

Share to:

Availability:



Inquire

APPLICATION
ADVANTAGE
MODELS
VIDEO
PARTNER

1. TUBES METERIAL

● Cold and hot rolled carbon steel

● Low and high resistance carbon steel

● Galvanized, galvanized aluminium, aluminized steel

● Stainless steel

● Aluminium

● Copper

2. TUBES APPLICATION

● Structural tubes

● Water and gas pipes

● Electrical metallic tubing(EMT)

● Scaffold pipes

● Door and window tubes

● Furniture tubes

● Greenhouse tubes

● Photovoltaic support tubes

● Guardrail tubes

● Car tubes

● Tower base tubes

● API oil pipes

● Drive shaft pipes

● Roller pipes

● Mechanical tubes

● Special shaped tubes

3. TUBES STANDARD

EN, ASTM, JIS, DIN, GB, API

1. FORMING TECHNOLOGY

W Forming Technology
FFX(Flexible Forming Excellent) Technology
Linear Cage Forming / Direct Forming Technology

2. TUBE MILL FEATURESE

● High strength.

● High speed.

● Quick change product size.

● Excellent quality control technology.

● High automation.

● International general spare parts.

3. OUR SERVICES

● Provide integral solutions.

● Provide customized solutions.

● Provide equipment modification and upgrade services.

● Provide turnkey projects.

● Provide free technical consultation.

● Provide performance testing before shipment.

● Provide remote fast fault diagnosis and resolution.

● Provide fast supply spare parts.

1.MODELS

Model	Round Tube		Square & Rectangle Tube		Speed(m/min)
Model	O.D(mm)	Thickness (mm)	O.D(mm)	Thickness (mm)	Speed(m/min)
ERW32	Φ8~Φ38	0.3~2	10×10~30×30	0.3~1.5	Max.120/150
ERWL60	Φ12~Φ63	0.6~2.5	15×15~50×50	0.6~2	Max.100/140
ERW60	Φ12~Φ63	0.6~3	15×15~50×50	0.6~2.5	Max.100/140
ERWL76	Φ21~Φ76	0.8~3.5	15X15~ 60X60	0.8~3	Max.100/120
ERW76	Φ25~Φ76	1~4	20X20 ~60X60	1~3.5	Max.100/120
ERW89	Φ32~Φ89	1.5~4.5	25X25 ~70X70	1.5~4	Max.90
ERWL127	Φ25~Φ127	1~4	20X20 ~100X100	1~3.5	Max.80
ERW127	Φ48~Φ127	1.5~5	40×40~100×100	1.5~4.5	Max.60
ERW165	Φ60~Φ165	2~6	50×50~130×130	2~5.5	Max.60
ERW254	Φ114~Φ254	3~8	90×90~200×200	3~6	Max.50
ERW273	Φ114~Φ273	4~10	90×90~200×200	4~8	Max.40
ERW325	Φ165~Φ325	4~12	150×150~250×250	4~10	Max.30
ERW426	Φ165~Φ426	6~14	130×130~300×300	6~12	Max.30
ERW508	Φ165~Φ508	6~16	130×130~400×400	6~16	Max.25
ERW630	Φ325~Φ630	6~20	300×300~500×500	6~20	Max.20

Note: the above models are for reference, can be customized according to requirements.

2. TECHNICAL PROCESS

Coil loading➔Uncoiling➔Coil Peeling➔Strip Flattening➔Strip End Joining➔Strip Accumulating➔Forming➔H.F. Welding ➔Inner and External Scarfing➔Zinc Spraying and Dust Collecting➔Welding Seam Ironing➔Welding Seam Intermediate Annealing➔Air Cooling➔Water Cooling➔Eddy Current Testing (ET) ➔Sizing➔Rough Straightening➔Ultrasonic Testing (UT) ➔Marking➔Cutting Off➔Conveying➔Fine Straightening➔Conveying➔End Finishing➔Conveying ➔Hydrostatic Testing➔Packing➔Weighing➔Storing

Note: the above technical process is for reference, can be customized according to requirements.
