Slitting&Cut To Length Combined Line

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Ø High strength.
Ø High speed.
Ø Quick change product size.
Ø Excellent quality control technology.
Ø High automation.
Ø International general spare parts.
Availability:
Inquire

1.FUNCTION

Slitting And Cut To Length Combined Line（SL&CTL） is specialized shearing equipment which goes through the procedures of uncoiling, slitting,recoiling,flattening and shearing to process the wide steel coil into the narrow steel strip and sheets as required.

2. Coil METERIAL

● Cold and hot rolled carbon steel

● Low and high resistance carbon steel

● Galvanized, galvanized aluminium, aluminized steel

● Stainless steel

● Aluminium

● Copper

3. STRIP COILS APPLICATION

● ERW Carbon Steel Tube Mills

● Roll Froming Mills

● Metal processing

● Etc.

4. STRIP STANDARD

EN, ASTM, JIS, DIN, GB

Slitting&Cut To Length Combined Line

 Slitting&Cut To Length Combined Line
Slitting&Cut To Length Combined Line Slitting&Cut To Length Combined Line


Slitting&Cut To Length Combined Line Slitting&Cut To Length Combined Line
Slitting&Cut To Length Combined Line Slitting&Cut To Length Combined Line

 IMG_20190121_141410

1.Slitting And Cut To Length Combined Line MODELS

Model

Strip Width(mm)

Strip Thickness (mm)

SL&CTL850×1.5

300~800

0.2~1.5

SL&CTL1300×2

500~1250

0.3~2

SL&CTL1600×3

600~1550

0.3~3

SL&CTL1600×4

600~1550

0.5~4

SL&CTL1600×6

600~1550

1~6

SL&CTL1850×8

600~1800

2~8

SL&CTL2000×12

800~2000

3~12

SL&CTL2000×16

800~2000

4~16

SL&CTL2200×20

800~2200

6~20

SL&CTL2200×25

800~2200

6~25

Note: the above models are for reference, can be customized according to requirements.

2. TECHNICAL PROCESS

Coil preparation➔ Coil loading➔ Uncoiling➔Guiding➔ Pinching and leveling ➔ Shearing strip head➔ 1#Loop ➔ Side guide assembly ➔Pinching➔ Slitting➔ Scrap winding➔Slits end pressing ➔2#Loop ➔ Inline separator➔ Felt press type tension➔ Director roll➔ Recoiling➔ Unloading（Slitting for final strip coils）

➔Guiding➔Fine Flattening➔Measuring Length➔Shearing➔Conveying➔Stacking➔Packing➔Unloading（Cut to length for final sheets）

Note: the above technical process is for reference, can be customized according to requirements


1. FEATURESE

● High strength.

● High speed.

● Quick change product size.

● Excellent quality control technology.

● High automation.

● International general spare parts.

2. OUR SERVICES

● Provide integral solutions.

● Provide customized solutions.

● Provide equipment modification and upgrade services.

● Provide turnkey projects.

● Provide free technical consultation.

● Provide performance testing before shipment.

● Provide remote fast fault diagnosis and resolution.

● Provide fast supply spare parts.

_DSC0151 _DSC0164 _DSC0052



IMG20190910092942 IMG20180227112200 IMG20190326095608



dianqijixieyeyaqidong

Previous:
Next:
slitting line coil slitting line steel coil slitting line slitting machine coil slitting machine steel coil slitting machine Slitting&Cut To Length Combined Line coil slitter steel coil slitter slitting and cut to length combined line

Hot Products

HF Welder/High Frequency Induction Welder
HF Welder/High Frequency Induction Welder
1) High strength: High designed strength, high strength material is adopted to process heat treatment, which will enhance material strength and eliminate internal stress.

2) High precision: CNC machine tool precision machining to ensure machining accuracy and assembly accuracy, while reducing equipment loss.

3) High automation: Equipment main movement driven by hydraulic motor and controlled by PLC, which could save labor and labor intensity.

4) High speed: Driven by high power motor, frequency variable speed control system, to ensure every single machine operation synchronize.
0
0

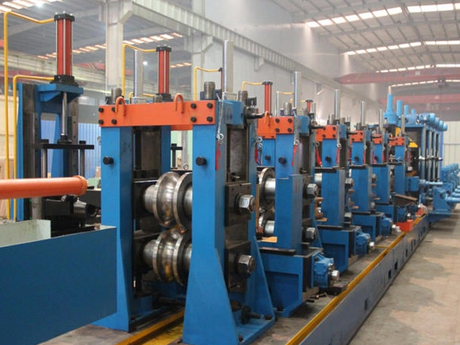

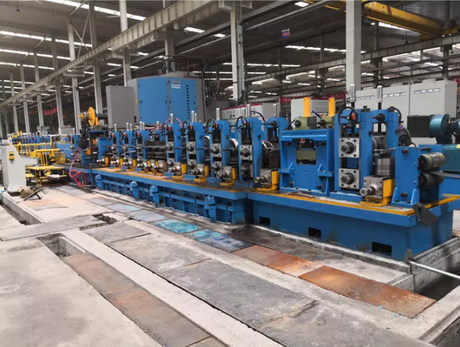

ERW Carbon Steel Tube Mills
