Choosing the right Steel Tube Mill Equipment is important for manufacturers that need stable production, consistent tube quality, and flexible processing capabilities. A complete tube mill line combines several machines to transform steel coils into finished welded tubes through forming, welding, sizing, cutting, and other processes.
For steel tube producers, the equipment configuration should match the required tube diameter, wall thickness, material, production speed, and finished product specifications. Working with an experienced Steel Tube Mill Equipment Manufacturer China can also make it easier to develop a production line around specific manufacturing requirements.
Shijiazhuang Faith Machinery Co., Ltd. provides Steel Tube Mill Equipment, ERW Tube Mill Machines, Steel Pipe Making Machines, and complete tube mill production lines for different steel tube applications.
Email: crystal@faith-machinery.com
Website: https://www.faith-machinery.com/

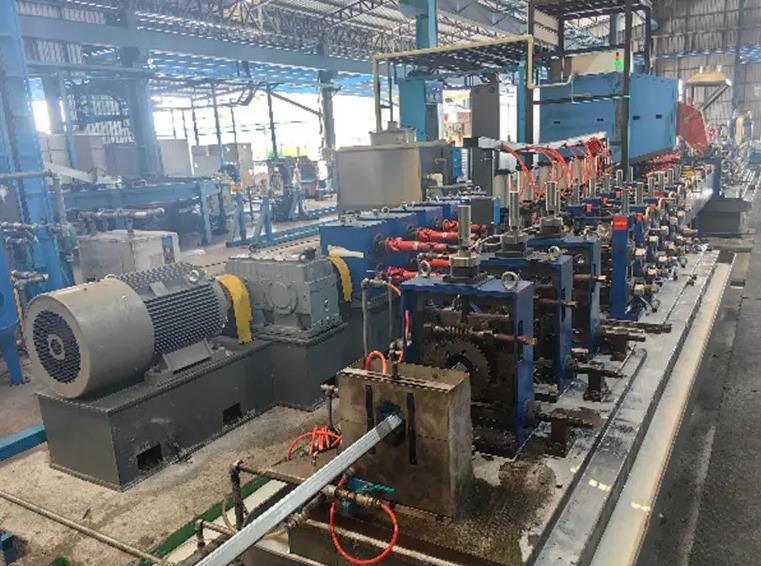

Steel Tube Mill Equipment refers to the machinery and auxiliary systems used to manufacture welded steel tubes from steel strip or coils.
A typical production line may include:
Uncoiler
Strip straightening equipment
Shearing and welding unit
Accumulator
Forming mill
High-frequency welding system
Sizing mill
Straightening section
Cutting machine
Run-out table
Each section performs a specific function, while the complete line operates as a continuous production system.
Production begins with steel coils loaded onto the uncoiler.
The uncoiler continuously feeds the steel strip into the production line. Stable feeding is important for maintaining consistent forming and welding conditions.
The strip may pass through leveling and preparation equipment before entering the forming section.
An accumulator can store a certain amount of strip material, helping maintain continuous operation during coil joining.
The flat steel strip passes through a series of forming rollers.
The rollers gradually bend the strip into the required tubular shape.
Proper roller alignment and tooling design are important for controlling:
Tube diameter
Tube shape
Edge alignment
Surface condition
Once the strip has been formed, the edges are joined through a high-frequency welding process.
This creates a continuous longitudinal weld seam.
High-frequency welding is commonly used in ERW Tube Mill Equipment for continuous welded tube production.
After welding, the tube passes through sizing rollers.
The sizing section helps achieve the required:
Outside diameter
Tube shape
Dimensional consistency
A straightening section may then be used to improve the finished tube's straightness.
The finished tube is cut into specified lengths according to production requirements.
Automatic cutting helps reduce manual handling and maintain consistent product lengths.
ERW Tube Mill Equipment uses electric resistance welding technology to manufacture welded steel tubes.
Typical applications include:
Carbon steel tubes
Structural tubes
Industrial pipes
Furniture tubes
ERW production lines can be configured for different tube sizes and production requirements.
Carbon Steel Tube Mill Equipment is designed for producing tubes from carbon steel strip.
These tubes are commonly used in:
Construction
Machinery manufacturing
Steel structures
General engineering
The machine configuration should be selected according to material grade, wall thickness, and tube dimensions.
Some production lines are configured for square and rectangular tubes.
These products are frequently used for:
Structural frames
Furniture
Building components
Machinery structures
The forming and sizing sections need to be configured for the required tube shape.
The forming mill gradually changes the flat steel strip into a tubular shape.
Its performance affects the stability of the production process and finished tube dimensions.
The welding system joins the edges of the formed strip.
Important factors include:
Welding power
Material characteristics
Production speed
Tube wall thickness
The sizing mill controls the final dimensions and shape of the tube.
Accurate tooling is important when producing tubes with tight dimensional requirements.
The cutting system separates continuous tube production into individual lengths.
Depending on the line configuration, manufacturers may use different cutting methods for specific tube sizes and production speeds.
Welded steel tubes are widely used for:
Structural frames
Support structures
Scaffolding
Construction components
Steel tubes are used in various automotive components and structural applications.
Production requirements may include consistent dimensions and controlled weld quality.
Steel tubes are common materials for:
Chair frames
Table frames
Shelving systems
Metal furniture
Industrial equipment manufacturers use steel tubes for:
Machine frames
Supports
Mechanical structures
Equipment components
Before purchasing equipment, manufacturers should determine the required:
Tube diameter
Wall thickness
Tube shape
Finished length
The production range directly affects machine configuration and tooling requirements.
The material being processed also affects equipment selection.
Common options include:
Carbon steel
Galvanized steel
Stainless steel
Different materials may require different forming and welding parameters.
Production capacity should be evaluated according to:
Target output
Production speed
Product range
Operating schedule
A properly configured Steel Tube Mill Production Line can provide continuous production for manufacturers with regular high-volume requirements.
Automation can be applied to:
Material feeding
Welding control
Tube sizing
Cutting
Production monitoring
The appropriate automation level depends on factory requirements and investment plans.
A suitable manufacturer should be able to design equipment according to:
Tube specifications
Material type
Production capacity
Factory layout
This is particularly important when standard equipment cannot fully meet production requirements.
Tube mill equipment contains many precision components.
Important manufacturing capabilities include:
Roller machining
Mechanical assembly
Electrical integration
Welding system installation
Equipment testing
For complete production lines, technical support may include:
Installation guidance
Equipment commissioning
Operator training
Maintenance guidance
Spare parts support
Shijiazhuang Faith Machinery Co., Ltd. specializes in manufacturing Steel Tube Mill Equipment and Welded Pipe Production Lines.
Its equipment range includes:
Steel Tube Mill Equipment
ERW Tube Mill Machines
Steel Tube Making Machines
Steel Pipe Making Machines
Tube Mill Production Lines
Faith Machinery can configure tube mill equipment according to the customer's required tube range, material, production capacity, and production process.
Email: crystal@faith-machinery.com
Website: https://www.faith-machinery.com/
Feature | Complete Steel Tube Mill Equipment | Individual Tube Making Machine |
|---|---|---|
Production Process | Multiple integrated stages | Specific production stage |
Automation | Can be integrated | Depends on machine |
Production Capacity | Designed as a complete line | Usually more limited |
Configuration | Customized as a production system | More standardized |
Application | Continuous tube manufacturing | Specific processing requirements |
For manufacturers planning a complete production facility, an integrated tube mill line can simplify production management and equipment coordination.
Rollers should be inspected for:
Wear
Alignment
Surface damage
Installation accuracy
Proper roller maintenance helps maintain tube forming consistency.
The welding system should be checked regularly to maintain stable production conditions.
Operators should monitor welding parameters and inspect weld quality during production.
Sizing rollers and cutting equipment should be inspected according to operating hours and production conditions.
Regular maintenance can help reduce unexpected downtime.
Steel Tube Mill Equipment is used to manufacture welded steel tubes from steel coils or strips through forming, welding, sizing, straightening, and cutting.
The terms are often used interchangeably in welded tube production. The actual equipment configuration depends mainly on the tube or pipe specifications and intended application.
Yes. A production line can be designed for a specific range of tube sizes, with appropriate forming and sizing tooling used for different specifications.
Yes. Equipment can be configured according to tube dimensions, material, production capacity, and other manufacturing requirements.
Depending on the machine configuration, tube mills can process materials such as carbon steel, galvanized steel, and stainless steel.
Selecting suitable Steel Tube Mill Equipment requires consideration of tube specifications, material type, production capacity, automation level, and factory conditions.
A complete production line integrates material feeding, forming, welding, sizing, straightening, and cutting to provide a continuous manufacturing process for welded steel tubes.
For manufacturers looking for a Steel Tube Mill Equipment Manufacturer China, Shijiazhuang Faith Machinery Co., Ltd. provides customized tube mill and steel pipe production solutions.
Email: crystal@faith-machinery.com
Website: https://www.faith-machinery.com/
