In modern manufacturing and metal processing, a metal coil cutting machine is essential for converting large steel, aluminum, or stainless steel coils into manageable strips or sheets. These machines increase efficiency, reduce waste, and ensure accurate sizing for further fabrication.
Shijiazhuang Faith Machinery Co., Ltd specializes in designing and manufacturing metal coil cutting machines with advanced automation, precision control, and durable construction. Contact: Phone: +86 15350593960, Email: crystal@faith-machinery.com.

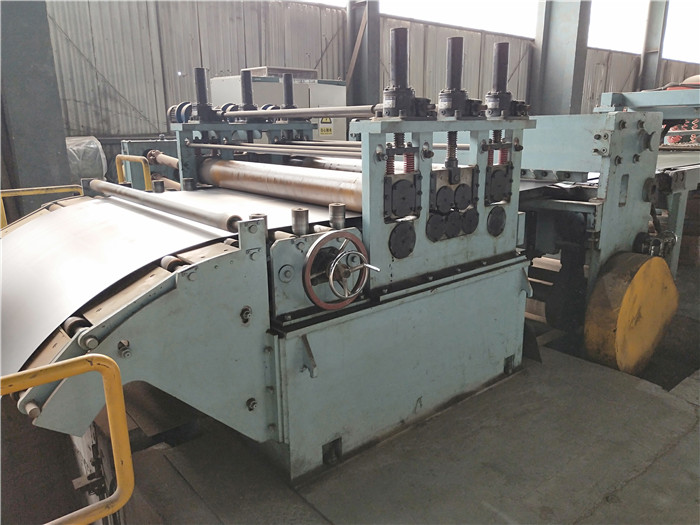

A metal coil cutting machine is equipment designed to slit or cut rolled metal coils into narrower strips or sheets with precise dimensions. Unlike a cut-to-length line, coil cutting machines often focus on slitting or shearing continuous coils, producing multiple strips simultaneously.
The process typically includes:
Decoiling: Unwinding the metal coil
Leveling: Flattening the coil for smooth feeding
Slitting/Shearing: Cutting the coil to the desired width or strip size
Recoiling/Stacking: Collecting the processed metal for transportation or further processing
High Precision Slitting: Maintains uniform width across multiple strips
Heavy-Duty Rollers and Blades: Ensure durability for long-term operation
PLC Control System: Facilitates automated operation and parameter adjustment
Adjustable Speed: Optimizes output for different material types and thicknesses
Flexible Material Compatibility: Works with steel, stainless steel, aluminum, and coated metal
| Type | Features | Typical Applications |
|---|---|---|
| Hydraulic Coil Slitting Machine | Smooth, precise cuts with adjustable blade pressure | Steel service centers, sheet metal suppliers |
| Mechanical Shear Coil Cutter | High-speed cutting for thin metals | Light gauge steel, aluminum |
| Fully Automatic Coil Cutting Line | Integrated decoiling, leveling, slitting, recoiling | Mass production of metal strips |
| Stainless Steel Coil Cutter | Corrosion-resistant components | Food, chemical, and pharmaceutical industries |
| Galvanized Metal Coil Cutter | Suitable for coated metals | Roofing, appliance, and automotive sheets |
Simultaneous slitting and processing of multiple strips increases output.
Maintains consistent strip width and length, reducing waste and rework.
Automation minimizes manual handling and increases safety.
Adjustable for different coil widths, thicknesses, and material types.
Robust construction and hardened blades ensure long-term performance.
| Specification | Typical Range |
|---|---|
| Coil Width | 500–1600mm (customizable) |
| Coil Thickness | 0.2–6mm |
| Slit Width | 10–300mm (adjustable) |
| Production Speed | 10–80 m/min |
| Coil Weight | Up to 15–20 tons |
| Power Supply | 380V / 50Hz, customizable |
Tip: Ensure the machine supports your specific coil type, width, and thickness to avoid processing issues.
Determine whether you process mild steel, stainless steel, aluminum, or galvanized sheets.
Check that the machine can handle your maximum coil width, thickness, and weight.
Choose a semi-automatic or fully automatic line depending on production volume.
Select machines with easy-to-replace or adjustable blades for consistent quality.
Work with experienced manufacturers like Shijiazhuang Faith Machinery Co., Ltd for installation support, training, and after-sales service.
| Problem | Possible Cause | Solution |
|---|---|---|
| Uneven Strip Width | Blade misalignment | Recalibrate blade position and check rollers |
| Burrs on Edges | Blade wear | Replace or sharpen blades regularly |
| Coil Jamming | Improper feeding | Inspect decoiler and adjust tension |
| Recoiling Issues | Incorrect tension or alignment | Adjust tension control and guide rollers |
| Machine Vibration | Loose components or misaligned rollers | Tighten bolts, realign rollers |
Construction: Roofing, steel wall panels, structural strips
Automotive: Exhaust components, chassis tubing, metal frames
Furniture Manufacturing: Metal tubing and flat strips
Appliance Manufacturing: Steel or aluminum panels for refrigerators, ovens, and washing machines
Industrial Fabrication: Sheet metal parts for machinery, pipelines, and industrial equipment
High-quality metal coil cutting machines with precise slitting and shearing
Machines designed for steel, stainless steel, aluminum, and coated metals
Fully automated and semi-automated solutions for different production scales
Professional installation, training, and maintenance support
Customizable configurations to match your production needs
Contact: Phone: +86 15350593960 | Email: crystal@faith-machinery.com
metal coil cutting machine
automatic metal coil slitting machine
stainless steel coil cutter
galvanized metal coil cutting line
high-speed coil slitting machine
industrial metal coil cutter
Shijiazhuang Faith Machinery coil cutting machine
A metal coil cutting machine is an essential investment for manufacturers needing precise, efficient, and high-speed metal processing. From slitting to recoiling, these machines optimize material usage, improve productivity, and ensure consistent output.
Shijiazhuang Faith Machinery Co., Ltd provides reliable, high-performance metal coil cutting machines with professional support and worldwide delivery, making them a trusted partner for steel service centers, fabrication workshops, and industrial facilities.
