Shijiazhuang Faith Machinery Co., Ltd manufactures high precision ERW tube mills that incorporate advanced technologies specifically designed to achieve exceptional dimensional accuracy and surface quality. These systems represent the pinnacle of precision engineering in tubular product manufacturing, incorporating multiple technological innovations to maintain tight tolerances throughout production.
The foundation of precision begins with the structural design featuring heavy-duty welded frames with optimized stiffness-to-weight ratios. These structures incorporate advanced vibration damping materials and engineering principles that minimize external vibrations and thermal effects. The massive construction ensures stability during high-speed operation while maintaining alignment accuracy over extended production runs.

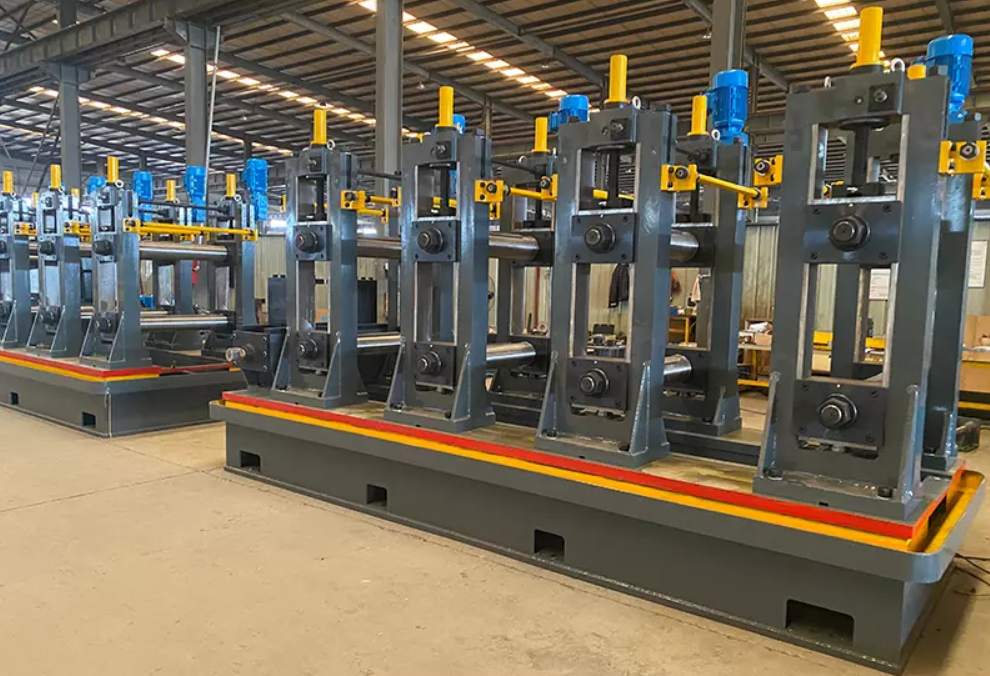

Precision forming sections employ ground forming rolls manufactured from premium tool steels with specialized surface treatments. These rolls maintain exact profiles with minimal runout, typically within 0.005mm. The roll mounting systems utilize preloaded bearings and precision adjustment mechanisms that allow micron-level control of roll positions. Digital readout systems provide exact positioning information for repeatable setup and adjustment.
The forming sequence incorporates advanced engineering principles that account for material springback and flow characteristics. Each forming stand contributes to the gradual transformation while maintaining uniform material tension and preventing stretching or compression. Computer-aided engineering analysis optimizes the forming process for different materials and thicknesses, ensuring consistent quality across various production requirements.
Welding systems for high precision applications incorporate solid-state high-frequency generators with precise power control capabilities. These systems maintain consistent energy input through closed-loop control systems that adjust parameters in real-time based on material conditions. Water-cooled contacts and transformers ensure stable electrical characteristics throughout extended production runs. Automatic positioning systems maintain optimal electrode alignment with precision typically within 0.01mm.
Sizing systems employ multi-stand arrangements with individual motor controls and precision adjustment capabilities. Each sizing stand can be micro-adjusted while running to compensate for tooling wear or material variations. Laser measuring systems provide continuous feedback for automatic adjustments, maintaining dimensional consistency throughout production. The sizing process typically involves 4-8 stands that gradually bring the pipe to its final dimensions while improving roundness and straightness.
Drive systems utilize servo motors with high-resolution encoders that maintain precise speed synchronization across all sections. The control system implements electronic gearing technology that ensures perfect coordination between different machine sections. Vibration isolation measures and temperature control systems protect the drive systems from external influences that could affect precision.
Measurement and inspection systems include laser micrometers that continuously monitor outside diameter with accuracy up to 0.001mm. Wall thickness measurement systems utilize ultrasonic or X-ray technology to verify material consistency. Surface inspection systems employ high-resolution cameras and image processing algorithms to detect and classify surface imperfections.
These high precision systems typically achieve dimensional tolerances within ±0.05mm for diameter and ±0.015mm for wall thickness. Surface finish quality reaches Ra 0.4μm or better, suitable for applications requiring subsequent polishing, plating, or painting. The consistent quality produced by these machines makes them suitable for demanding applications in automotive, aerospace, and precision engineering industries.
