The ERW tube mill machine is one of the most important systems in modern steel pipe manufacturing. It is widely used to produce welded steel pipes for construction, infrastructure, automotive, energy transportation, and industrial applications.
ERW stands for Electric Resistance Welding, a technology that uses high-frequency electrical current to heat and fuse the edges of a steel strip into a continuous welded pipe.
A modern steel pipe making machine integrates forming, welding, sizing, and cutting processes into a continuous production line known as a tube mill production line. This allows manufacturers to produce steel pipes efficiently with high precision and stable quality.
This article explains the working principle of an ERW tube mill machine in detail, including a step-by-step breakdown, production flow diagram, machine structure, and technical insights.

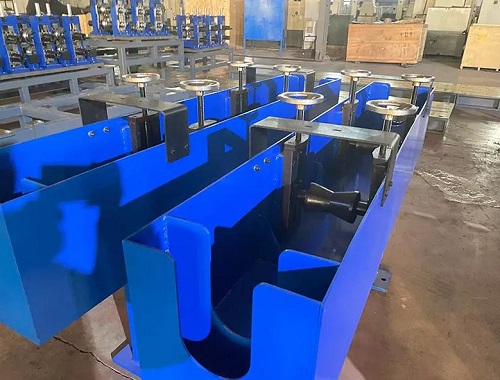

An ERW tube mill machine is industrial equipment that converts steel coils into welded steel pipes through continuous roll forming and high-frequency welding.
It is capable of producing:
round steel pipes
square steel tubes
rectangular hollow sections
The machine operates in a continuous flow, which significantly increases production efficiency compared to traditional pipe manufacturing methods.
Below is a simplified production flow diagram of an ERW tube mill machine:
Steel Coil ↓ Uncoiler System ↓ Strip Leveling Unit ↓ Accumulator (Optional) ↓ Forming Roll Section ↓ High-Frequency Welding Unit ↓ Weld Seam Finishing ↓ Sizing Section ↓ Flying Saw Cutting System ↓ Run-Out Table ↓ Finished Steel Pipes
This continuous flow ensures high-speed and stable pipe production.
The production begins with steel coils placed on a hydraulic uncoiler. The coil is unwound and fed into the production line.
A leveling system ensures the strip remains flat and stable before entering the forming section.
An accumulator is used to store a certain length of steel strip, allowing continuous production during coil change.
This ensures:
uninterrupted operation
stable production speed
higher efficiency
The steel strip passes through multiple forming stands.
Each roller gradually bends the flat strip into a cylindrical shape.
Key functions of forming section:
controlling pipe roundness
ensuring dimensional accuracy
preparing edges for welding
The forming section is one of the most critical parts of the tube mill production line.
This is the most important stage of the ERW tube mill machine.
The two edges of the steel strip are heated using high-frequency electrical current.
Then pressure rollers press the heated edges together to form a solid weld seam.
Key features:
fast heating speed
strong metallurgical bonding
minimal heat-affected zone
stable welding quality
This process is the reason ERW pipes are widely used in industrial applications.
After welding, excess material (weld bead) is removed from inside and outside the pipe.
This ensures:
smooth pipe surface
improved flow performance
better dimensional accuracy
The pipe enters the sizing section where rollers adjust the final diameter and shape.
Some machines can also produce:
square tubes
rectangular tubes
This section ensures the pipe meets strict tolerance requirements.
A flying saw cuts the pipe into fixed lengths while the production line continues moving.
Advantages:
continuous production
high cutting accuracy
no production interruption
Finished pipes are transferred to the run-out table where they are cooled, inspected, and stacked for packaging.
A complete steel pipe making machine includes multiple systems:
| Component | Function |
|---|---|
| Uncoiler | Feeds steel coil |
| Leveling machine | Flattens strip |
| Forming unit | Shapes strip into pipe |
| HF welding system | Welds pipe seam |
| Sizing unit | Controls final size |
| Flying saw | Cuts pipe |
| Electrical control system | PLC automation |
Each component works together to ensure continuous production.
| Parameter | Specification |
|---|---|
| Pipe diameter range | 20 – 219 mm |
| Wall thickness | 1.2 – 8 mm |
| Production speed | 30 – 120 m/min |
| Material type | Carbon steel / galvanized steel |
| Welding method | High-frequency ERW |
| Control system | PLC automatic control |
| Cutting system | Flying cold saw |
These parameters vary depending on machine configuration and production requirements.
Continuous production allows large-scale output.
High-frequency welding ensures durable and reliable seams.
Machines can produce multiple pipe sizes with roller adjustments.
Efficient use of steel coil reduces material waste.
PLC systems reduce manual operation and improve accuracy.
Caused by unstable welding current or misalignment.
Solution: adjust HF welding parameters and roller positioning.
Caused by improper forming pressure.
Solution: recalibrate forming section.
Caused by worn rollers.
Solution: replace or polish forming rollers.
ERW pipes are widely used in:
Construction Industry
scaffolding
structural frames
building supports
Oil & Gas Industry
pipeline transportation
Automotive Industry
exhaust systems
structural components
Industrial Manufacturing
machinery tubing
hydraulic systems
When selecting a machine, consider:
Define required daily output.
Choose based on target market demand.
Higher automation improves efficiency but increases investment.
Experienced manufacturers provide better engineering support.
Spare parts and technical support are critical for long-term operation.
It is a machine that produces welded steel pipes by forming steel strip and welding it using high-frequency current.
High efficiency, low cost, and strong weld quality.
Yes, by adjusting forming and sizing rollers.
Carbon steel, galvanized steel, and alloy steel.
Construction, oil and gas, automotive, and infrastructure industries.
The ERW tube mill machine is a highly efficient system for producing welded steel pipes. Its working principle combines continuous forming, high-frequency welding, sizing, and automatic cutting into one integrated production process.
With advanced automation and stable welding technology, modern steel pipe making machines have become the backbone of global pipe manufacturing industries.
Understanding the working principle of an ERW tube mill helps manufacturers optimize production efficiency, reduce costs, and improve product quality.
