The global demand for welded steel pipes continues to grow as infrastructure development, construction projects, and industrial manufacturing expand across many countries. Steel pipes are essential materials used in structural engineering, pipeline transportation, automotive production, and machinery manufacturing.
To meet market demand efficiently, manufacturers must build modern factories equipped with advanced ERW pipe production lines and steel pipe making machines. A properly designed production line layout ensures smooth material flow, efficient equipment operation, and high productivity.
This guide explains how to design a complete ERW tube mill production line layout, including factory planning, equipment configuration, production workflow, and technical considerations for building a welded pipe manufacturing facility.

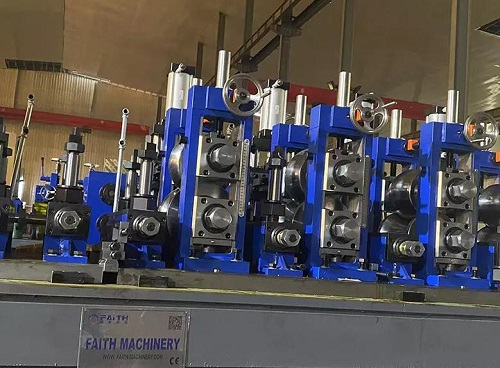

An ERW pipe production line is an integrated manufacturing system that converts steel coils into welded steel pipes through forming, welding, sizing, and cutting processes.
ERW stands for Electric Resistance Welding, a technology that uses high-frequency electrical current to heat and fuse the edges of a steel strip.
Compared with other pipe manufacturing methods, ERW production offers several advantages:
high production speed
consistent pipe dimensions
lower production cost
efficient material utilization
Modern pipe factories rely on tube mill machines capable of producing pipes continuously with minimal manual intervention.
Designing a factory layout is one of the most important steps when building a steel pipe manufacturing facility. The layout must allow materials to move smoothly from raw steel coils to finished pipes.
A typical ERW pipe factory layout includes the following sections:
| Production Area | Function |
|---|---|
| Raw material storage | Steel coil storage area |
| Coil loading section | Feeding coils into the production line |
| Tube mill production area | Forming and welding pipes |
| Pipe cutting section | Cutting pipes to specified lengths |
| Finished pipe storage | Storing completed products |
| Quality inspection zone | Testing pipe strength and dimensions |
Efficient layout design reduces production interruptions and improves overall workflow.
A complete welded pipe manufacturing plant includes multiple machines working together as a continuous production system.
| Equipment | Function |
|---|---|
| Hydraulic decoiler | Holds and feeds steel coils |
| Strip accumulator | Maintains continuous strip supply |
| Tube mill forming section | Forms strip into pipe shape |
| High-frequency welding unit | Welds pipe seam |
| Sizing machine | Adjusts pipe diameter |
| Flying saw cutting system | Cuts pipes to required length |
| Run-out table | Collects finished pipes |
Each piece of equipment must be arranged properly to ensure efficient operation.
An effective layout ensures that the steel strip flows through the production process smoothly.
The typical layout sequence is:
Steel coil loading area
Decoiler and strip leveling section
Strip accumulator system
Tube mill forming section
High-frequency welding unit
Pipe sizing machine
Flying saw cutting machine
Run-out table and pipe collection
This linear production flow minimizes material handling and maximizes production efficiency.
Understanding the production process helps optimize equipment layout and factory operations.
Production begins with steel coils stored in the raw material area. Coils are loaded onto a hydraulic decoiler that feeds the steel strip into the tube mill.
The steel strip passes through multiple forming rollers that gradually bend the strip into a circular tube shape.
Precision alignment is critical during this stage to ensure proper welding.
The edges of the strip are heated using high-frequency electrical current.
Pressure rollers then compress the heated edges together, creating a strong welded seam.
The pipe enters the sizing section where rollers refine the pipe diameter and shape.
Some production lines also convert round pipes into square or rectangular tubes.
A flying saw cuts pipes to specified lengths while the production line continues operating.
Finished pipes are then transferred to the run-out table for cooling and stacking.
The technical specifications of a tube mill depend on the pipe sizes being produced.
Below is an example specification for a medium-capacity welded pipe production line.
| Parameter | Specification |
|---|---|
| Pipe diameter range | 20 – 219 mm |
| Wall thickness | 1.2 – 8 mm |
| Production speed | 30 – 120 m/min |
| Raw material | Carbon steel coil |
| Welding method | High-frequency ERW |
| Control system | PLC automatic control |
| Cutting type | Flying cold saw |
These parameters may vary depending on factory production requirements.
When planning a pipe manufacturing factory, sufficient space must be allocated for equipment installation and material handling.
| Production Capacity | Recommended Workshop Size |
|---|---|
| Small pipe mill | 500 – 800 m² |
| Medium pipe production line | 800 – 2000 m² |
| Large pipe manufacturing plant | 2000 – 5000 m² |
Additional space may be required for raw material storage and finished pipe inventory.
Tube mill production lines require reliable power and utility systems.
Key requirements include:
industrial electrical power supply
compressed air system
cooling water circulation system
overhead cranes for material handling
These systems ensure stable machine operation and efficient production.
Designing an efficient ERW pipe production line layout provides several benefits.
A well-planned layout reduces material handling time and allows continuous production.
Efficient factory design reduces energy consumption and labor requirements.
Clear separation of production areas improves worker safety.
Proper equipment spacing allows technicians to perform maintenance more easily.
Many new factories encounter problems due to poor layout planning.
Common mistakes include:
insufficient space between machines
inefficient material flow
inadequate power supply planning
lack of maintenance access
Working with experienced equipment suppliers can help avoid these issues.
Modern steel pipe factories are becoming more advanced as new technologies are adopted.
Digital monitoring systems allow operators to track production performance in real time.
Automated pipe handling systems reduce labor requirements and improve efficiency.
Modern tube mills are designed to reduce electricity consumption and improve environmental performance.
Advanced tube mill machines are capable of producing pipes at much higher speeds while maintaining product quality.
The tube mill machine is the core equipment responsible for forming and welding steel pipes.
Installation and commissioning usually require 30 to 90 days, depending on the complexity of the equipment.
Yes. By changing forming rollers and adjusting machine settings, manufacturers can produce pipes of different diameters.
Most welded pipes are produced from carbon steel coils or galvanized steel strips.
Welded pipes are widely used in construction, infrastructure, energy transportation, automotive manufacturing, and machinery production.
Designing a complete ERW pipe production line layout is a critical step when building a steel pipe manufacturing plant. A well-planned factory layout ensures efficient material flow, stable equipment operation, and high production output.
Modern pipe manufacturing facilities rely on advanced steel pipe making machines and tube mill production lines to produce welded pipes efficiently and consistently.
By selecting reliable equipment and implementing a well-designed factory layout, manufacturers can build competitive pipe production plants capable of meeting the growing global demand for welded steel pipes.
