Slitting & Cut To Length Combined Line

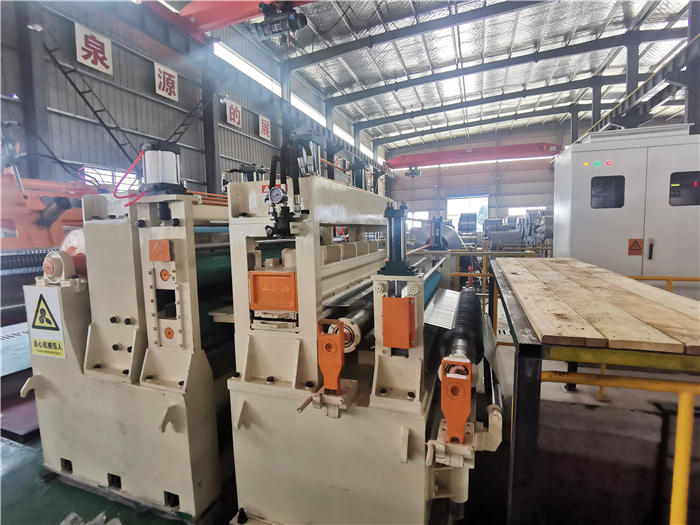

Shijiazhuang Faith Machinery Co.,Ltd’s Slitting & Cut To Length Combined Line merges the capabilities of coil slitting and sheet cutting into one integrated system, delivering both slit coils and flat sheet stacks from a single coil source. This dual-mode line is ideal for manufacturers who require flexibility to supply narrow coils for roll forming as well as cut-to-length blanks for stamping or panel fabrication.


Material handling begins at the decoiler, which feeds strip into an accumulator loop large enough to buffer material for both slitting and cut-to-length operations. A universal tension leveler downstream produces a flat strip suitable for precise slitting and square-edge cut lengths. The strip then reaches a pick-off device where a diverter gate directs material either to the slitting module or the CTL module, based on the selected production recipe.


In slitting mode, rotating knives on precision shafts shear the strip into specified widths, with scrap removed by choppers and conveyors. In CTL mode, the strip advances to a flying shear capable of producing lengths from 500 mm to 8,000 mm at line speeds up to 120 m/min. Guillotine shear options are also available for thicker materials or lower-speed requirements. Finished sheets are conveyed to a stacking station where servo-driven arms form neat bundles sized for downstream handling.


Automation is managed through a central PLC that coordinates decoiler feed, leveler, slitting, shearing, and recoiling functions. Operators select recipes via the HMI, which stores settings for coil diameter limits, slit patterns, sheet lengths, and line speeds. Data logging captures production counts, material usage, and downtime events, supporting traceability and process improvement initiatives.


After installation, Shijiazhuang Faith Machinery provides comprehensive commissioning services, including multi-shift trial runs to validate line capabilities. Operator and maintenance training cover both slitting and CTL procedures, while preventive maintenance schedules ensure timely replacement of shear blades, leveler rolls, and conveyor components. With this combined line solution, manufacturers gain the agility to switch seamlessly between coil supply and sheet production, optimizing floor space and capital investment.
